View Code View Report View Poster
Problem Data Method Results Discussion References

Problem

The gut microbiome plays an important role in human health, and microbial composition has been linked to conditions such as inflammatory bowel disease, Parkinson’s disease, Alzheimer’s disease, and autism spectrum disorder.

Most microbiome datasets contain only relative abundances, where the sample is measured as composition. The sums of each taxa in a sample must add up to one, meaning that when the count of one taxa increases, the count of another must decrease.

In contrast, absolute abundance data contains the true count of taxa present per sample. However, the process for obtaining this data is far more expensive and labor-intensive.

Thus, our project had two ultimate goals:

  1. Evaluate whether absolute abundance data can provide more insights into the gut microbiome.
  2. Find a method of constructing absolute abundance data from relative abundance to perform new analyses and save money on an expensive lab procedure.

Objectives

We conducted the following analyses:

  1. use differential abundance techniques (ANCOM-BC and BIRDMAn) to identify shared biological signals and specify distinctions between the methods,
  2. build baseline supervised machine learning models that can predict host metadata variables like age, body mass index (BMI), stool quality (Bristol Stool Scale), and related phenotypes,
  3. and model absolute abundance using relative abundance data, producing synthetic absolute abundance datasets.

Once we develop the relative → absolute abundance model, we would conduct further analysis to compare the performance of true versus predicted absolute abundance tables. This includes attempting to reproduce the results in parts a) and b) of the project.

Data

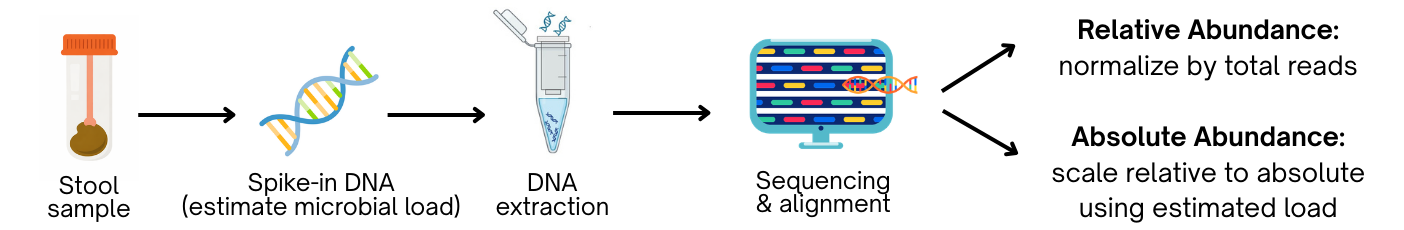

Our dataset contains paired microbiome feature tables and limited host metadata.

Inputs

Preprocessing

Why this matters

Relative abundance data is much easier to collect, but absolute abundance better reflects the true quantity of microbes. This project evaluates whether relative abundance can be used to recover similar biological conclusions and approximate absolute measurements.

Method

Our methodology consists of three major components.

1. Differential Abundance Analysis

We used two complementary frameworks to identify taxa enriched or depleted across host phenotype groups. ANCOM-BC was run via QIIME2, fitting a multifactor model with age, BMI, sex, and bowel movement as covariates; results were summarized at the genus level using log fold changes and FDR-adjusted q-values. BIRDMAn was run in parallel at the species level using a Bayesian hierarchical negative binomial model, and credible intervals on log fold changes were used to evaluate features of interest. We also ran a multifactor PERMANOVA on Bray–Curtis distances to contextualize taxon-level signals at the whole-community level.

To evaluate signal preservation, we applied the same ANCOM-BC pipeline to the true absolute abundance table and to the estimated absolute abundance table (relative abundance scaled by predicted total microbial load), comparing effect directions across both representations.

2. Predictive Modeling

We build baseline supervised learning models to predict host metadata variables from microbiome features, including:

This helps us compare how relative and absolute abundance representations perform in downstream prediction tasks.

Dataset Preparation

The dataset was split into:

Where the training set was used for model fitting, the validation set for hyperparameter tuning and model selection, and the test set for final performance evaluation.

We also manually balanced the training set so that each class was represented equally, e.g. for sex we made sure there were an equal number of ‘female’ and ‘male’ samples.

Feature Preprocessing

Only microbial taxa features were used as model inputs.

For the BMI and bowel movement predictive tasks, we removed extremely sparse taxa by applying a 40% prevalence filter using the training set. This threshold was selected after evaluating several candidate thresholds (0.1–0.5) and choosing the one that produced the best validation performance. Selected features were then applied consistently to the validation and test sets.

To reduce skewness in microbiome abundance data, both absolute and relative abundance values were transformed using log(x + 1).

We used a OneHotEncoder to encode the sex, BMI, and bowel movement quality metadata features.

Prediction Tasks

We evaluated four prediction tasks using microbiome features:

Models

We trained several commonly used machine learning models for high-dimensional biological data:

Random Forest and Gradient Boosted regression models used fixed hyperparameters, while HistGradientBoosting and SVM models were tuned using GridSearchCV.

Evaluation

Model performance was evaluated using metrics appropriate for each task.

Regression tasks (Age, BMI):

Classification tasks (Sex, BMI category, Bowel movement):

Baseline models (mean prediction or majority class) were used for comparison.

Statistical Comparison

To compare models trained on absolute vs relative abundance, we used bootstrap resampling (10,000 iterations) to estimate confidence intervals and test whether performance differences were statistically significant.

Model Interpretation

We applied SHAP (SHapley Additive Explanations) analysis to interpret model predictions and identify microbial taxa that contributed most strongly to each prediction task.

3. Modeling Absolute Abundance from Relative Abundance

Our final goal is to estimate absolute abundance using relative abundance data.

The idea is:

  1. use relative abundance features to predict the total absolute microbial load for each sample,
  2. multiply the predicted total by each feature’s relative proportion,
  3. generate a synthetic absolute abundance table.

Before training the model, we performed a number of transformations on the read counts and proportions.

  1. CLR transformation of proportions to remove the compositional constraint.
  2. Log of the relative abundance
  3. Log of the total read counts per sample
  4. A presence/absence indicator for each taxon
  5. Log of the raw read counts

These five features are then combined to create the final design matrix. Together, these features provide different views of the data in both compositional and count form. Using all of these allows the model to learn from both: which taxons are present and in what proportions and how strong the overall count signal is in the samples.

Because total abundance varies widely across samples, we apply a log(1 + x) transformation to the prediction target.

We experiment with multiple regression approaches, including:

Model Evaluation

We evaluated the model in two layers, the loads themselves and the resulting predicted absolute abundance table.

We measured the R², MAE, and RMSE for predictions in log space and raw space, the Spearman correlation, and median log error between the true and predicted loads.

In order to assess the correspondence between the true and predicted absolute abundance tables, we used Bray-Curtis dissimilarity to construct dissimilarity matrices. Bray-Curtis quantifies the pairwise dissimilarity between each sample using feature counts and does not make assumptions about compositionality. To visualize the dissimilarity, we ran Principal Coordinates Analysis (PCoA) on the matrices to embed them into coordinates, then compare the two sets of ordinations using Procrustes. Procrustes finds the optimal translation, rotation, and uniform scaling to fit one set into another. This step compares the distance of the same sample in the two ordinations between true and predicted.

Cross Dataset Assessment

To test the validity of our approach and for generalizability across sequencing types, we retrained the same model on a separate dataset. Since the new dataset was generated using long-read sequencing, it differed in feature composition from the first dataset. Therefore, direct evaluation of the model trained on the first dataset was not possible. Instead, we retrained the best performing model on the new dataset and evaluated the results independently. Because the long-read dataset contained significantly fewer samples than the original dataset, we also subsampled the original dataset to match the sample size of the long-read dataset and retrained the same model. This analysis was used to check if differences in predictive performance were also due to limited sample size or sequencing modality alone.

Results

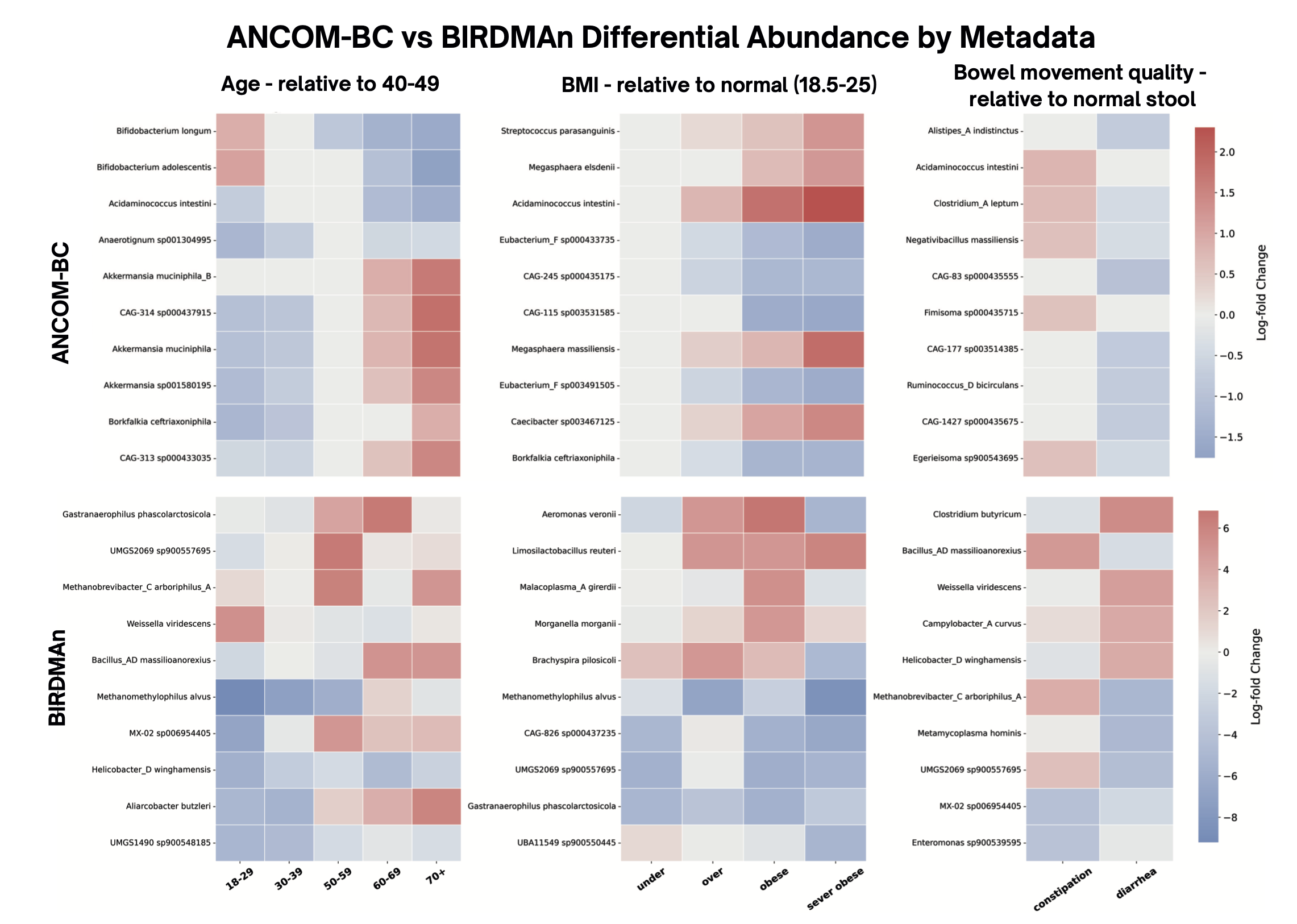

1. Differential Abundance Analysis

Differential abundance analysis showed that host-associated microbial signals were present in the NPH relative abundance data, but their strength and structure depended on the phenotype being tested.

Age

Age remained the clearest and most consistent differential abundance signal in our analysis. Compared with the other metadata categories, age produced broader and more coherent taxonomic shifts across bins and stood out in both ANCOM-BC and BIRDMAn as the strongest overall phenotype-associated pattern.

At the taxon level, Bifidobacterium longum and Bifidobacterium adolescentis were relatively enriched in younger age bins and depleted in older ones, while Akkermansia muciniphila showed the opposite pattern. These results made age the strongest and most interpretable biological signal in the differential abundance analysis.

BMI

BMI was also associated with taxonomic differences, but these shifts were weaker and more gradual overall than those observed for age. Across both ANCOM-BC and BIRDMAn, BMI showed detectable signal, but the results were less coherent and less strongly structured across bins.

Overall, the BMI findings suggest that body mass is associated with microbiome variation, though the signal appears more modest and gradual than the age-associated shifts.

Bowel Movement Quality

Bowel movement quality also showed clear taxon-level contrasts relative to the normal-stool reference group, but unlike age, these effects appeared more localized. At the species level, both ANCOM-BC and BIRDMAn showed visible separation from the reference category, although the two methods did not consistently prioritize the same exact species.

BIRDMAn highlighted taxa such as Campylobacter curvus and Helicobacter winghamensis, both of which have previously been associated with gastroenteritis or diarrhea-related gut disturbance.

Community-Level Interpretation

These taxon-level findings were further contextualized by PERMANOVA, which indicated that age was associated with stronger community-level structure, whereas stool-quality effects were more restricted at the whole-community level. When viewed together with the ANCOM-BC and BIRDMAn results, this pattern suggests that age is linked to broader and more coherent microbiome-wide restructuring, BMI is associated with weaker and more gradual taxonomic shifts, and bowel movement quality primarily affects a more limited set of taxa.

True vs. Estimated Absolute Abundance

As a sensitivity check, we also applied ANCOM-BC to the true absolute abundance table and to the estimated absolute abundance table. The estimated absolute abundance results were very similar to the true absolute abundance results, suggesting that the major host-associated effect directions were largely preserved after transformation.

Key Takeaways

Together, these results suggest that the NPH relative abundance data retain meaningful host-associated biological structure, but that the magnitude and coherence of that structure are phenotype-dependent.

2. Predictive Modeling

We compare model performance across abundance representations for host phenotype prediction tasks. These results help determine whether absolute abundance provides stronger predictive signal than relative abundance.

Age

The best age regression model was an RBF SVM. Relative abundance performed slightly better than absolute abundance:

This improvement was statistically significant, but the effect size was modest.

Sex

Sex prediction performance was similar across representations. Relative abundance performed slightly better overall, but the difference was not statistically significant.

Absolute:

Relative:

BMI

BMI showed the strongest benefit from relative abundance.

Regression

Classification

These results suggest that microbiome composition contains some BMI-related signal, but predictive power remains moderate.

Bowel Movement (Stool Quality)

Bowel movement classification achieved similar results across abundance representations.

Bootstrap comparisons found no significant difference between absolute and relative abundance models.

Overview

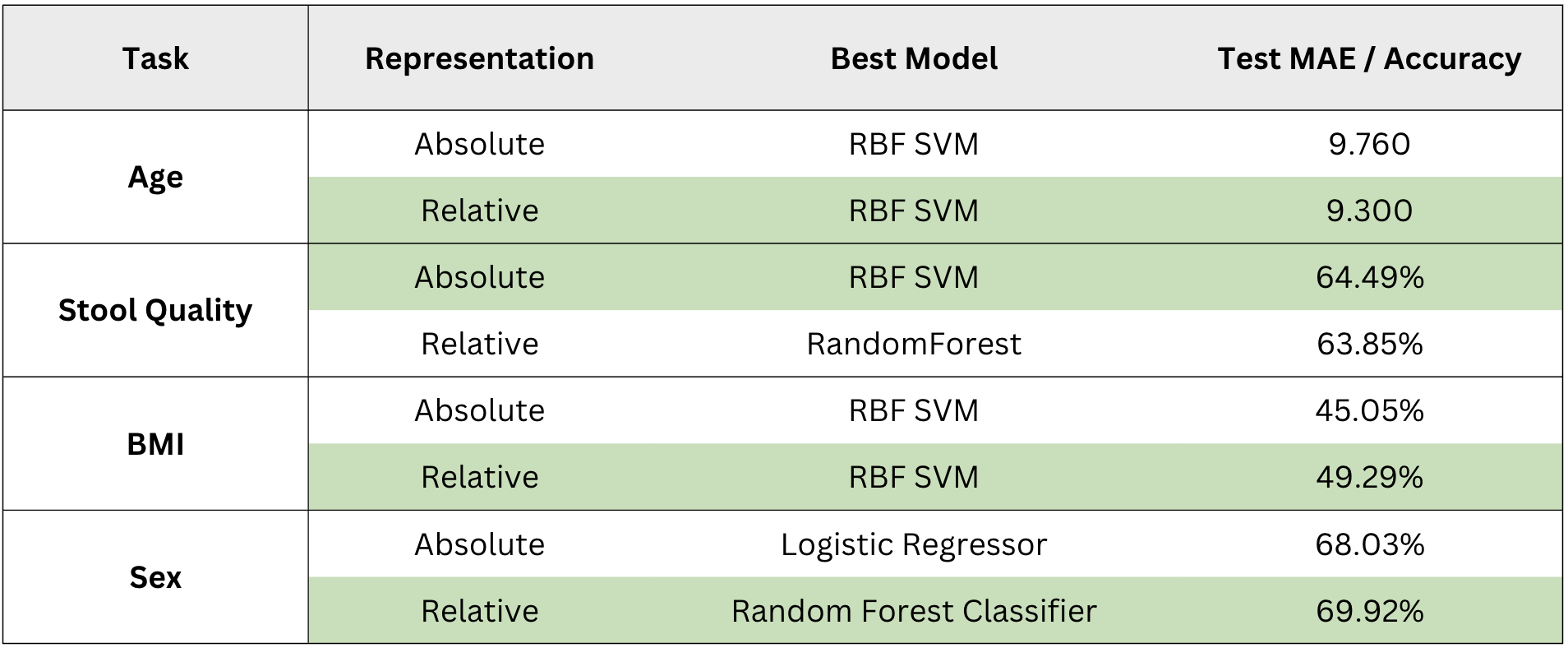

Comparison of predictive performance across abundance representations

Figure. Summary of best-performing metadata prediction models across age, sex, BMI, and bowel movement tasks.

3. Modeling Absolute Abundance from Relative Abundance

Load Prediction Performance

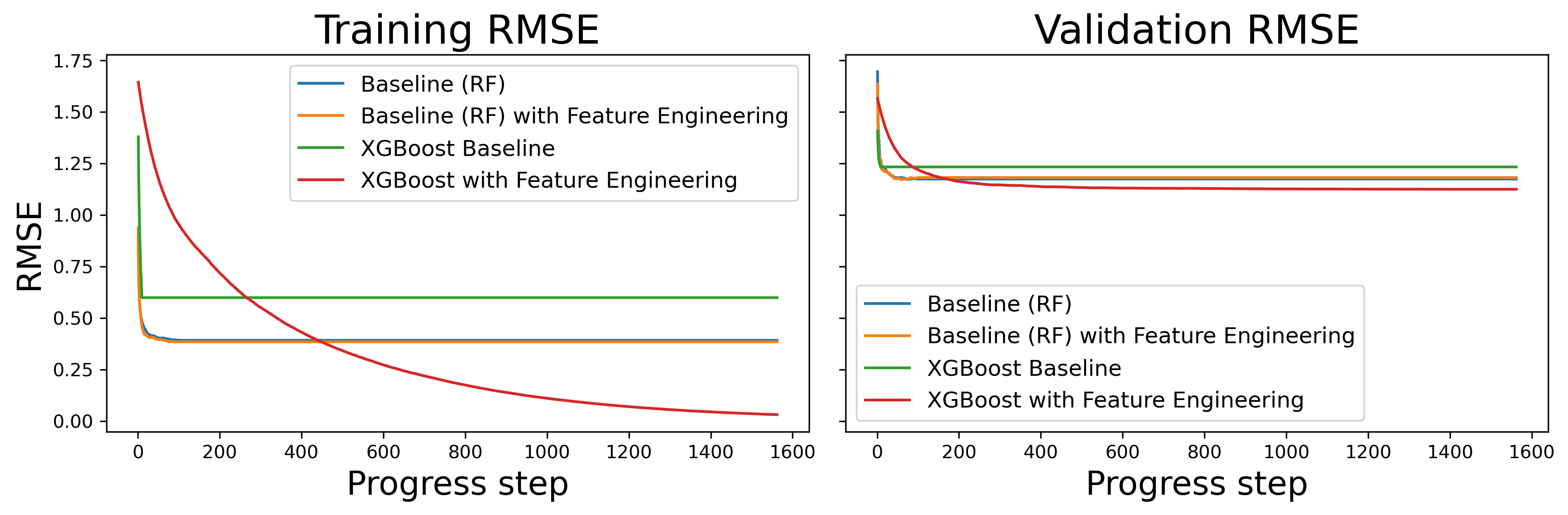

After testing various linear and non-linear model, the best performing model is XGBoost regression using gradient-boosted decision trees.

Model performance is as follows:

Predicted Absolute Abundance Tables

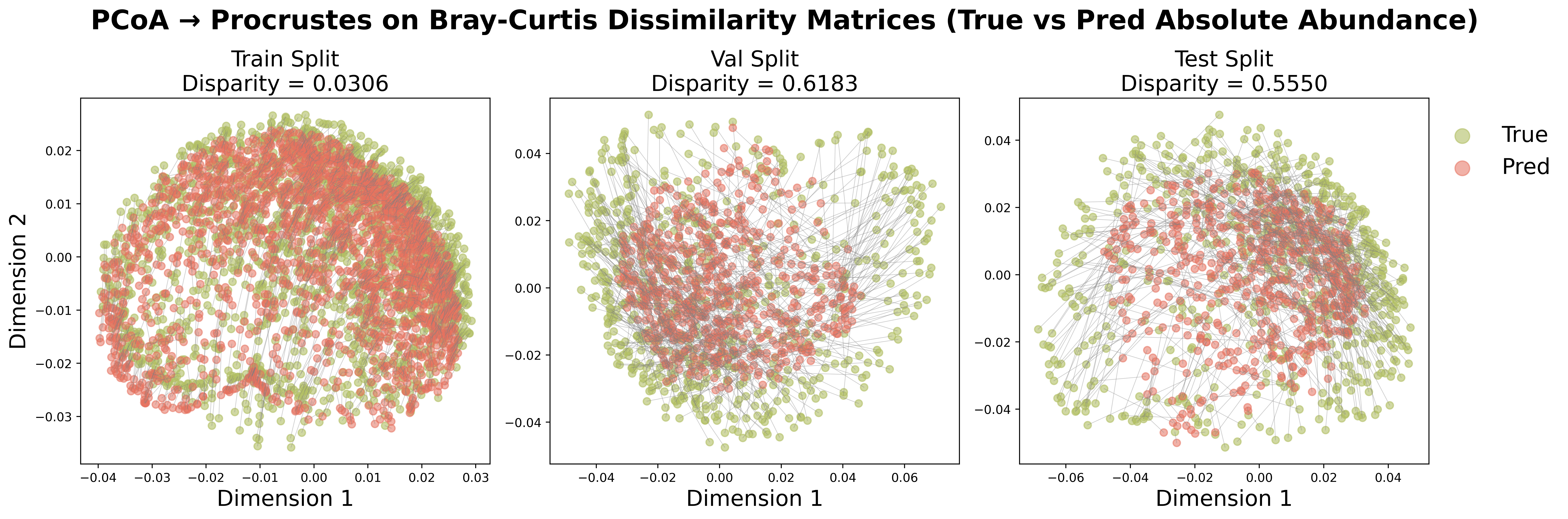

In visualizing the Bray-Curtis dissimilarities, PCoA was applied on each matrix and then run through Procrustes to generate the following visualization:

The resulting Procrustes M² yielded 0.555 on the test split. Also seen through the visualization, we observe moderate alignment between the two ordination configurations.

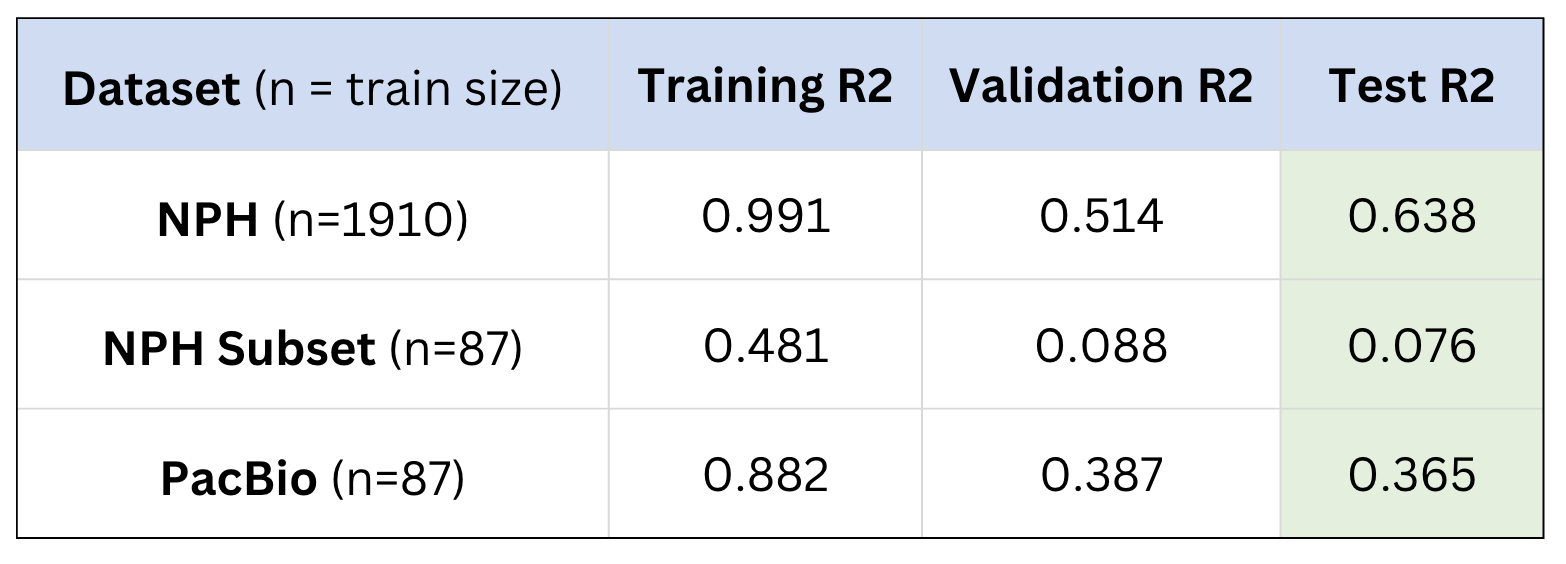

Cross Dataset Assessment

After retraining the model on a new, long-read dataset, we saw that the model performed worse than the model trained on the original dataset. Since the sample size of the new dataset is smaller (87 compared to 1910 in training size), we also retrained the model on a subset of the original data. Under this size-matched setting, the performance on the original dataset dropped significantly. These results indicate that the lower performance observed on the new dataset relative to the full original dataset is likely to be due to large differences in sample size. At the same time, the stronger performance on the new dataset relative to the subsampled original dataset suggests that the modeling approach may retain meaningful predictive power on the long-read dataset despite the differences in sequencing modality and feature composition.

Discussion

More broadly, our work asked two key questions:

Ultimately, we found that:

Next steps may involve evaluating these approaches on longitudinal datasets and exploring additional prediction targets, such as disease phenotypes.

References

Abbott, Sharon L., Michael Waddington, David Lindquist, Jim Ware, Wendy Cheung, Janet Ely, and J. Michael Janda. "Description of Campylobacter curvus and C. curvus-like Strains Associated with Sporadic Episodes of Bloody Gastroenteritis and Brainerd's Diarrhea." Journal of Clinical Microbiology 43, no. 2 (2005): 585–588.

Aitchison, John. "The Statistical Analysis of Compositional Data." Journal of the Royal Statistical Society: Series B (Methodological) 44, no. 2 (1982): 139–160.

All of Us Research Program Investigators. "The 'All of Us' Research Program." New England Journal of Medicine 381, no. 7 (2019): 668–676.

Ames, Nancy J., Alexandra Ranucci, Brad Moriyama, and Gwenyth R. Wallen. "The Human Microbiome and Understanding the 16S rRNA Gene in Translational Nursing Science." Nursing Research 66, no. 2 (2017): 184–197.

Anderson, Marti J. "A New Method for Non-Parametric Multivariate Analysis of Variance." Austral Ecology 26, no. 1 (2001): 32–46.

Arboleya, Silvia, Claire Watkins, Catherine Stanton, and R. Paul Ross. "Gut Bifidobacteria Populations in Human Health and Aging." Frontiers in Microbiology 7 (2016): 1204.

Bolyen, Evan, Jai Ram Rideout, Matthew R. Dillon, Nicholas A. Bokulich, Christian C. Abnet, Gabriel A. Al-Ghalith, Harriet Alexander, et al. "Reproducible, Interactive, Scalable and Extensible Microbiome Data Science Using QIIME 2." Nature Biotechnology 37, no. 8 (2019): 852–857.

DeWeerdt, Sarah. "Parkinson's Gut-Microbiota Links Raise Treatment Possibilities." Nature (2025).

Fernandes, Andrew D., Jennifer Ns Reid, Jean M. Macklaim, Thomas A. McMurrough, David R. Edgell, and Gregory B. Gloor. "Unifying the Analysis of High-Throughput Sequencing Datasets: Characterizing RNA-seq, 16S rRNA Gene Sequencing and Selective Growth Experiments by Compositional Data Analysis." Microbiome 2, no. 1 (2014): 15.

Forry, Samuel P., Stephanie L. Servetas, Jason G. Kralj, Keng Soh, Michalis Hadjithomas, Raul Cano, Martha Carlin, et al. "Variability and Bias in Microbiome Metagenomic Sequencing: An Interlaboratory Study Comparing Experimental Protocols." Scientific Reports 14, no. 1 (2024): 9785.

Gloor, Gregory B., Jean M. Macklaim, Vera Pawlowsky-Glahn, and Juan J. Egozcue. "Microbiome Datasets Are Compositional: And This Is Not Optional." Frontiers in Microbiology 8 (2017): 2224.

Huang, Shi, Niina Haiminen, Anna-Paola Carrieri, Rebecca Hu, Lingjing Jiang, Laxmi Parida, Baylee Russell, et al. "Human Skin, Oral, and Gut Microbiomes Predict Chronological Age." mSystems 5, no. 1 (2020): 10–1128.

Knight, Rob, Alison Vrbanac, Bryn C. Taylor, Alexander Aksenov, Chris Callewaert, Justine Debelius, Antonio Gonzalez, et al. "Best Practices for Analysing Microbiomes." Nature Reviews Microbiology 16, no. 7 (2018): 410–422.

Knights, Dan, Laura Wegener Parfrey, Jesse Zaneveld, Catherine Lozupone, and Rob Knight. "Human-Associated Microbial Signatures: Examining Their Predictive Value." Cell Host & Microbe 10, no. 4 (2011): 292–296.

Lin, Huang, and Shyamal Das Peddada. "Analysis of Compositions of Microbiomes with Bias Correction." Nature Communications 11, no. 1 (2020): 3514.

Lovell, David, Vera Pawlowsky-Glahn, Juan José Egozcue, Samuel Marguerat, and Jürg Bähler. "Proportionality: A Valid Alternative to Correlation for Relative Data." PLoS Computational Biology 11, no. 3 (2015): e1004075.

McArdle, Brian H., and Marti J. Anderson. "Fitting Multivariate Models to Community Data: A Comment on Distance-Based Redundancy Analysis." Ecology 82, no. 1 (2001): 290–297.

McDonald, Daniel, Embriette Hyde, Justine W. Debelius, James T. Morton, Antonio Gonzalez, Gail Ackermann, Alexander A. Aksenov, et al. "American Gut: An Open Platform for Citizen Science Microbiome Research." mSystems 3, no. 3 (2018): 10–1128.

Melito, P. L., C. Munro, P. R. Chipman, D. L. Woodward, T. F. Booth, and F. G. Rodgers. "Helicobacter winghamensis sp. nov., a Novel Helicobacter sp. Isolated from Patients with Gastroenteritis." Journal of Clinical Microbiology 39, no. 7 (2001): 2412–2417.

Miller, Don M. "Reducing Transformation Bias in Curve Fitting." The American Statistician 38, no. 2 (1984): 124–126.

Morton, James T., Clarisse Marotz, Alex Washburne, Justin Silverman, Livia S. Zaramela, Anna Edlund, Karsten Zengler, and Rob Knight. "Establishing Microbial Composition Measurement Standards with Reference Frames." Nature Communications 10, no. 1 (2019): 2719.

National Institutes of Health. "Nutrition for Precision Health, Powered by the All of Us Research Program." 2021.

Nearing, Jacob T., Gavin M. Douglas, Molly G. Hayes, Jocelyn MacDonald, Dhwani K. Desai, Nicole Allward, Casey M. A. Jones, et al. "Microbiome Differential Abundance Methods Produce Different Results Across 38 Datasets." Nature Communications 13, no. 1 (2022): 342.

Pasolli, Edoardo, Duy Tin Truong, Faizan Malik, Levi Waldron, and Nicola Segata. "Machine Learning Meta-Analysis of Large Metagenomic Datasets: Tools and Biological Insights." PLoS Computational Biology 12, no. 7 (2016): e1004977.

Props, Ruben, Frederiek-Maarten Kerckhof, Peter Rubbens, Jo De Vrieze, Emma Hernandez Sanabria, Willem Waegeman, Pieter Monsieurs, Frederik Hammes, and Nico Boon. "Absolute Quantification of Microbial Taxon Abundances." The ISME Journal 11, no. 2 (2017): 584–587.

Rahman, Gibraan, James T. Morton, Cameron Martino, Gregory D. Sepich-Poore, Celeste Allaband, Caitlin Guccione, Yang Chen, Daniel Hakim, Mehrbod Estaki, and Rob Knight. "BIRDMAn: A Bayesian Differential Abundance Framework That Enables Robust Inference of Host-Microbe Associations." BioRxiv (2023).

Thomas, Andrew Maltez, Paolo Manghi, Francesco Asnicar, Edoardo Pasolli, Federica Armanini, Moreno Zolfo, Francesco Beghini, et al. "Metagenomic Analysis of Colorectal Cancer Datasets Identifies Cross-Cohort Microbial Diagnostic Signatures and a Link with Choline Degradation." Nature Medicine 25, no. 4 (2019): 667–678.

The Human Microbiome Project Consortium. "Structure, Function and Diversity of the Healthy Human Microbiome." Nature 486, no. 7402 (2012): 207–214.

Tkacz, Andrzej, Marion Hortala, and Philip S. Poole. "Absolute Quantitation of Microbiota Abundance in Environmental Samples." Microbiome 6, no. 1 (2018): 110.

Turnbaugh, Peter J., Micah Hamady, Tanya Yatsunenko, Brandi L. Cantarel, Alexis Duncan, Ruth E. Ley, Mitchell L. Sogin, et al. "A Core Gut Microbiome in Obese and Lean Twins." Nature 457, no. 7228 (2009): 480–484.

Vandeputte, Doris, Gunter Kathagen, Kevin D'hoe, Sara Vieira-Silva, Mireia Valles-Colomer, João Sabino, Jun Wang, et al. "Quantitative Microbiome Profiling Links Gut Community Variation to Microbial Load." Nature 551, no. 7681 (2017): 507–511.

Vandesompele, Jo, Katleen De Preter, Filip Pattyn, Bruce Poppe, Nadine Van Roy, Anne De Paepe, and Frank Speleman. "Accurate Normalization of Real-Time Quantitative RT-PCR Data by Geometric Averaging of Multiple Internal Control Genes." Genome Biology 3, no. 7 (2002): research0034–1.

Zaramela, L. S., M. Tjuanta, O. Moyne, M. Neal, and K. Zengler. "SynDNA—A Synthetic DNA Spike-In Method for Absolute Quantification of Shotgun Metagenomic Sequencing." mSystems 7 (2022): e0044722.

Zeng, Shi-Yu, Yi-Fu Liu, Jiang-Hua Liu, Zhao-Lin Zeng, and Hui Xie. "Potential Effects of Akkermansia muciniphila in Aging and Aging-Related Diseases: Current Evidence and Perspectives." Aging and Disease 14, no. 6 (2023): 2015.
